Inside the Apple 1720 Charger included with the iPhone 11 Pro Max

发布时间:2019年9月27日
撰稿人:辛金·迪克森·沃伦

这个iPhone 11 Pro Maxships with the Apple 1720 18 W USB-C power delivery charger. This device is rated to delivery 5 V and 3 A or 9 V and 2 A. In follow up to our recent博客关于各种售后交流适配器,我们决定看看里面的苹果产品。

18W A1720为4.3cm×4.3cm×2.7cm,相当于50cm(或3.0英寸)因此,功率密度为6 W/in,which is only ~1/3 the power density achieved by the market leading Innergie 60C charger.

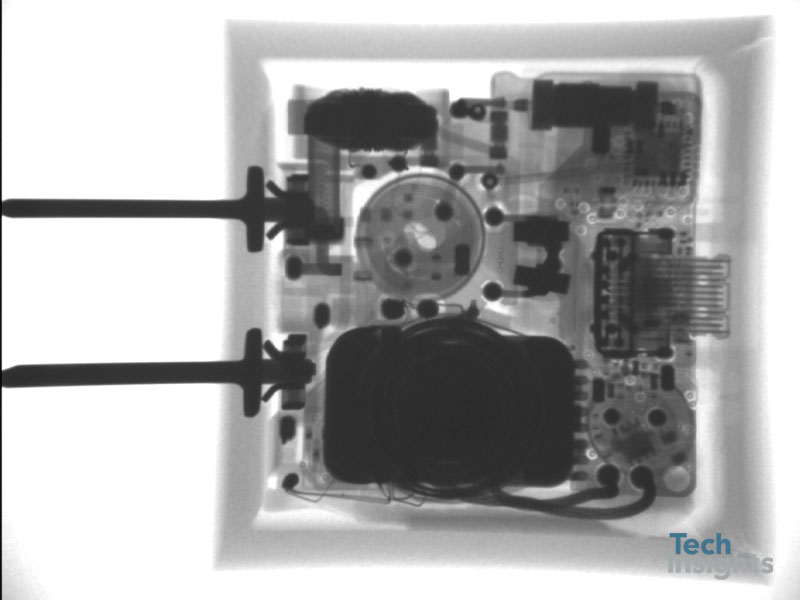

Cracking open the case of the A1720 we find a densely packed collection of electronic components mounted on a PCB. The backside of the PCB features a Cypress Semiconductor CYPD313532L-QXQQ and an Alpha & Omega AO32394E power MOSFET. The front side of the PCB is densely packed with three electrolytic capacitors, an inductor coil and a transformer. Removing these devices revealed two more packaged components, namely a Power Integrations SC1263K6 active flyback controller and an Infineon BSZ096N10LS5 100 V N-channel power MOSFET.

制造商 零件号 突出的标记 设备类型 项目描述
赛普拉斯半导体 CYPD313532L-QXQQ. CYPD313型
532LQXQQ.
1919年TWN.
6157
USB Controller USB Type-C端口控制器。
阿尔法和欧米茄 AO32394E公司 (徽标)
32394E型
GA9K1U型
功率MOSFET. 阿尔法和欧米茄AO33294E is a Power MOSFET.
功率集成 SC1263K6型 (徽标)
SC1263K6型
CV/CC反激式开关IC Power Integrations Inc SC1263K6 is a CV/CC Flyback Switcher IC.
英飞凌 BSZ096N10LS5型 S10L型
RL21
功率MOSFET. 英飞凌BSZ096N10LS5型is N-channel, OptiMOS 5, Power-Transistor rated for 100V.

Apple 1720 18 W USB-C

Apple 1720 18 W USB-C

Apple 1720 18 W USB-C

Apple 1720 18 W USB-C

Apple 1720 18 W USB-C

Apple 1720 18 W USB-C

Apple 1720 18 W USB-C
